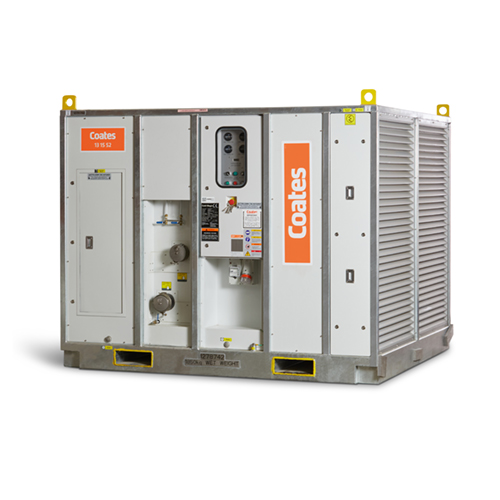

The 300 kw air handling unit is suitable for cooling or heating in a wide range of industries and applications.
1. Mining
2. Oil & gas
3. Power generation
4. Food & beverage
5. Events
6. Manufacturing
7. Construction
And more
1. Building comfort cooling or heating
2. Event cooling or heating
3. Tunnel or shaft cooling
And more
Electrical | |
Power supply | 415V/50Hz/3Ph |
Nominal current | 34 amps |
Cooling / heating capacity | 300 kW / 100 kW |
Recommended genset | 30 kVA |
Recommended cable size | 16 mm2 |
Mechanical | |
Dimensions (L x W x H) | 2500 mm x 2280 mm x 2100 mm |
Weight (Shipping / Operation) | 1855 kg |
Design flow - water | 10.2 L/s |
Design flow - air | 6426 L/s |
Static pressure | 1800 pa |
Connection (In / Out) | Camlock 4" |
Sound power level @10m | 60 dB(A) |
Where can I get a datasheet for the 300 kW air handling unit?
Contact the Coates team on 13 15 52 for a datasheet containing detailed product specifications.
How much does it cost to hire a 300 kW air handling unit?
Hire rates vary depending on hire length and running hours per day. Contact the Coates team on 13 15 52 for a quote.
What terrain can the 300 kW air handling unit be used on?
Our 300 kW air handling unit is mounted on a robust galvanised steel skid, making it suitable for all types of terrain.
How can I transport the 300 kW air handling unit?
The 300 kW air handling unit is equipped with forklift slots, lifting points and tie down points for easy transport.
