Flange Alignment Tools
Flange Alignment Tools
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

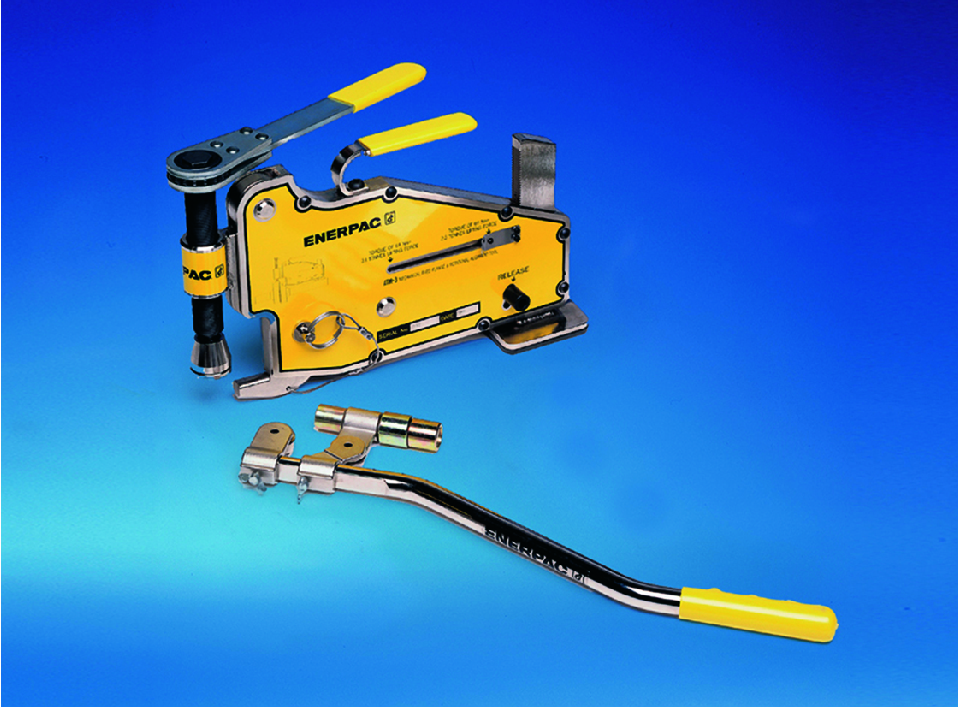

These tools are ideal for accurately aligning bolt holes while joining pipeline flanges, with no additional gear. Hire flange alignment tools with Coates.
Specifications
| "Max. Lifting Force Tonne (kN)" | Model No. | Bolt Hole Range | Flange Wall Thickness | Weight (kg) | ||
|---|---|---|---|---|---|---|
| (mm) | (inch) | (mm) | (inch) | |||
| 0.3 (3) | ATM-1 | 17-27.2 | 11/16-1 1/8 | 17-50 | 1 11/16 | 2 |
| 3.0 (27) | ATM-3 | 25-54 | 1-2 1/8 | 30-115 | 1 3/16-4 1/2 | 9.7 |
