Hydraulic Bolt Tensioners
Hydraulic Bolt Tensioners
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

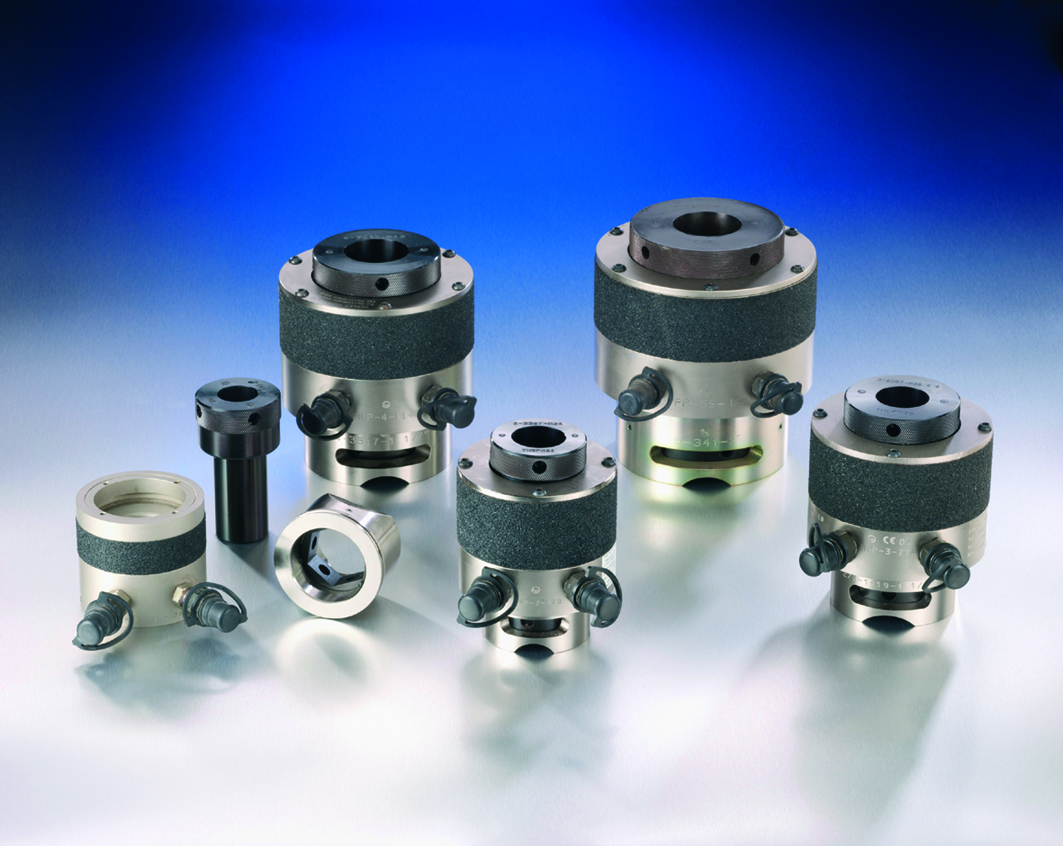

Coates's hydraulic bolt tensioners with a detachable and rotational bridge connect multiple tools. Hire bolting tools today from Coates.
Specifications
| Tensioner Ref | Bolt | Tool Hydraulic | Maximum Load | Weight | |||
|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm2 | TONF | kN | kg | |
| PS2 | 1 | M24 | 4.74 | 3058 | 46 | 458.3 | 5.5 |
| M27 | |||||||
| 1 1/8 | M30 | ||||||
| 1 1/4 | M33 | ||||||
| PS4 | 1 3/8 | M36 | 10.41 | 6716 | 101.1 | 1007.3 | 10 |
| 1 1/2 | M39 | ||||||
| 1 5/8 | M42 | ||||||
| 1 3/4 | M45 | ||||||
| 1 7/8 | M48 | ||||||
| PS6 | 2 | 15.71 | 10135 | 152.5 | 1514.5 | 17 | |
| 1 1/4 | M56 | ||||||
| M60 | |||||||
| 2 1/2 | M64 | ||||||
| PS8 | 2 3/4 | M68 | 25.49 | 16445 | 247.5 | 2466 | 29.5 |
| 1 1/4 | M76 | ||||||
| M80 | |||||||
| 3 1/4 | M85 | ||||||
| 3 1/2 | M90 | ||||||
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.| Tensioner Ref | Bolt | Tool Hydraulic | Maximum Load | Weight | |||
|---|---|---|---|---|---|---|---|
