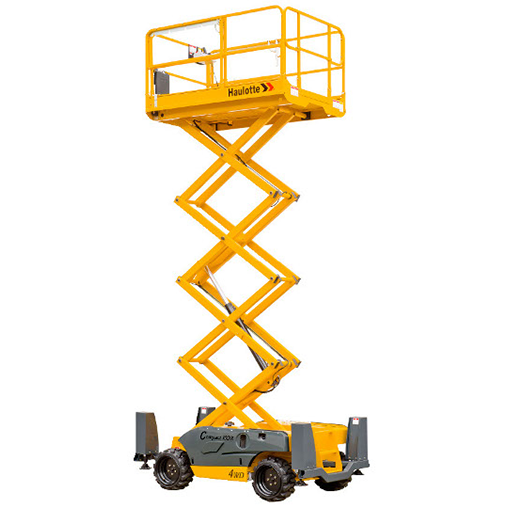

Scissor Lift - Diesel - 8.3M (27.2ft) - Rough Terrain
Scissor Lift - Diesel - 8.3M (27.2ft) - Rough Terrain
CODE: 10035
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Working on rough Australian conditions is possible with Coates's range of Diesel Scissor Lifts. Hire our 7.6m-9.4m Diesel Scissor Lift now.
Suitable For
Specifications
COMPACT 10 DX
| Working height | 10.28 m |
| Platform height | 8.28 m |
| Lift capacity | 565 kg (3 pers.) |
| Platform length | 2.45 m |
| Extended platform length | 3.7 m |
| Platform extension length | 1.2 m |
| Platform width | 1.45 m |
| Storage height | 1.59 m |
| Height - stowed | 2.44 m |
| Width | 1.78 m |
| Length | 3.17 m |
| Wheelbase | 1.84 m |
| Drive speed | 0.8 - 5.5 km/h |
| Maximum drive height | 8.15 m |
| Gradeability | 40 % |
| Tilt alarm | 3 ° |
| Lift / lower speed | 35 s / 46 s |
| Turning radius - outside | 3.5 m |
| Tyres - foam-filled | 26 x 12 - 16.5 |
| Engine Kubota | 18.5 kW (Stage 5 in EU) |
| Hydraulic system capacity | 75 l |
| Weight | 3,520 kg |
| Platform size - extended | 3.7 x 1.45 m |
| Number of extensions | 1 |
| Ground clearance | 28 cm |
| Lift capacity on the extension | 150 kg |
FAQ
What is the Haulotte compact 10DX scissor lift?
This is a rough terrain elevated work platform (EWP) with a greater load capacity than any other type. These are the go-to work platforms for indoor and outdoor use where more platform workspace is required. Small scissor lifts can fit through standard doorways for indoor applications.
How to start a Haulotte scissor lift?
Firstly, pull the emergency stop button, then turn the control box's key to the right. The indicators should light up, then press the starter selecter. For more instructions and key safety information, please read your Haulotte scissor lift manual.
Are hard hats required on scissor lifts?
All workers are required to wear hard hats while working on scissor lifts or other elevated work platforms.
Can a Haulotte scissor lift get wet?
The Haulotte scissor lift should be stored under cover and only used in dry conditions. The machine is not electrically insulated and Haulotte scissor lift parts can be damaged by water or moisture.
This is a rough terrain elevated work platform (EWP) with a greater load capacity than any other type. These are the go-to work platforms for indoor and outdoor use where more platform workspace is required. Small scissor lifts can fit through standard doorways for indoor applications.
How to start a Haulotte scissor lift?
Firstly, pull the emergency stop button, then turn the control box's key to the right. The indicators should light up, then press the starter selecter. For more instructions and key safety information, please read your Haulotte scissor lift manual.
Are hard hats required on scissor lifts?
All workers are required to wear hard hats while working on scissor lifts or other elevated work platforms.
Can a Haulotte scissor lift get wet?
The Haulotte scissor lift should be stored under cover and only used in dry conditions. The machine is not electrically insulated and Haulotte scissor lift parts can be damaged by water or moisture.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.COMPACT 10 DX
