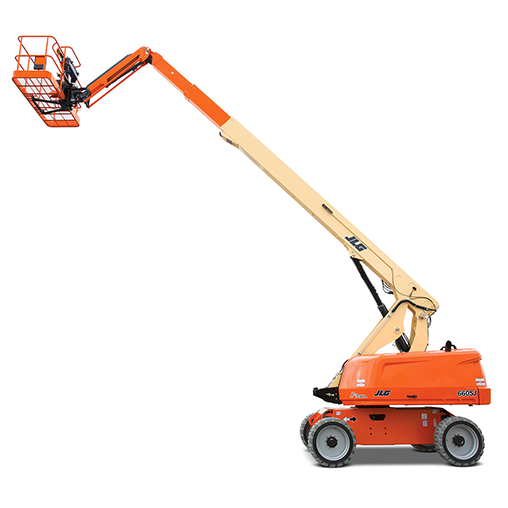

Straight Boom Lift - Diesel - 20.02M (65.7ft)
Straight Boom Lift - Diesel - 20.02M (65.7ft)
CODE: 10195
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
The extra height a telescopic boom lift provides countless workers to perform aerial tasks with ease. Often, the straight-up approach is most practical, and a diesel 18.0m - 20.1m straight boom lift with telescopic extension will ensure height is no object. Consistent and economical diesel power, 360º continuous swing and a restricted platform capacity of 340kg facilitates the convenient approach for workers and their tools.
Suitable For
Specifications
660SJ
Telescopic Boom Lifts
| Power Source | |
| Auxiliary Power | 12 Volts DC |
| Capacity - Fuel Tank | 117 L / 30.9 gal. |
| Engine Type - Diesel | Deutz D2011L04 36.4kw |
| Performance Data | |
| Axle Oscillation | 0.2 m / 8 in. |
| Platform Capacity - Restricted | 340 kg / 749.6 lb |
| Drive Speed - 4WD | 6.30 km/h / 3.9 mph |
| Gradeability - 4WD | 45 % |
| Platform Capacity - Unrestricted | 250 kg / 551.2 lb |
| Swing | 360 Degrees |
| Swing Type | Continuous |
| Turning Radius - Outside (2WS) | 5.96 m / 19.6 ft |
| Turning Radius - Outside (4WS) | 3.87 m / 12.7 ft |
| Dimensional Data | |
| Tyre Size | 355/55D625 Foam Filled |
| Ground Clearance | 0.29 m / 1 ft |
| Machine Height | 2.50 m / 8.2 ft |
| Machine Length | 10.79 m / 35.4 ft |
| Machine Width | 2.48 m / 8.1 ft |
| Platform Dimension A | 0.91 m / 3 ft |
| Platform Dimension B | 1.83 m / 6 ft |
| Platform Height | 20.02 m / 65.7 ft |
| Tailswing | 1.22 m / 4 ft |
| Reach Specifications | |
| Working Height | 22.02 m / 72.2 ft |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 17.40 m / 57.1 ft |
| Platform Height | 20.02 m / 65.7 ft |
| General Specifications | |
| Capacity - Hydraulic Reservoir | 129 L / 34.1 gal. |
| Machine Weight | 12528 kg / 27619.5 lb |
| Ground Bearing Pressure | 6.07 Kg/cm2 |
FAQ
What is a diesel-powered telescopic boom lift?
A diesel telescopic boom lift is an elevated work platform (EWP) specially designed for safely working at heights. Diesel power provides lift capacity along with the ability to drive and manoeuvre the lift into position.
What type of equipment is a telescopic boom?
Self-propelled telescopic boom lifts are just some of the extensive access equipment range available at Coates. Diesel telescopic boom lifts from Coates are suitable for rough terrain courtesy of 4 wheel drive operation and superior gradeability.
How do telescopic boom lifts work?
Telescopic propelled booms are operated by the user while standing on the work platform. The lift can be precisely positioned for comfortable working at heights. Coates provides full EWP training, with the qualification lasting for five years.
How to hire a telescopic boom lift?
Coates has an Australia-wide network of hire centres. We are in all major Australian cities and regional locations. Contact Coates over the phone, online or in person. You can even reserve equipment online so it is ready for action whenever you are. Enquire today for the best available telescopic boom lift hire price.
A diesel telescopic boom lift is an elevated work platform (EWP) specially designed for safely working at heights. Diesel power provides lift capacity along with the ability to drive and manoeuvre the lift into position.
What type of equipment is a telescopic boom?
Self-propelled telescopic boom lifts are just some of the extensive access equipment range available at Coates. Diesel telescopic boom lifts from Coates are suitable for rough terrain courtesy of 4 wheel drive operation and superior gradeability.
How do telescopic boom lifts work?
Telescopic propelled booms are operated by the user while standing on the work platform. The lift can be precisely positioned for comfortable working at heights. Coates provides full EWP training, with the qualification lasting for five years.
How to hire a telescopic boom lift?
Coates has an Australia-wide network of hire centres. We are in all major Australian cities and regional locations. Contact Coates over the phone, online or in person. You can even reserve equipment online so it is ready for action whenever you are. Enquire today for the best available telescopic boom lift hire price.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.660SJ
