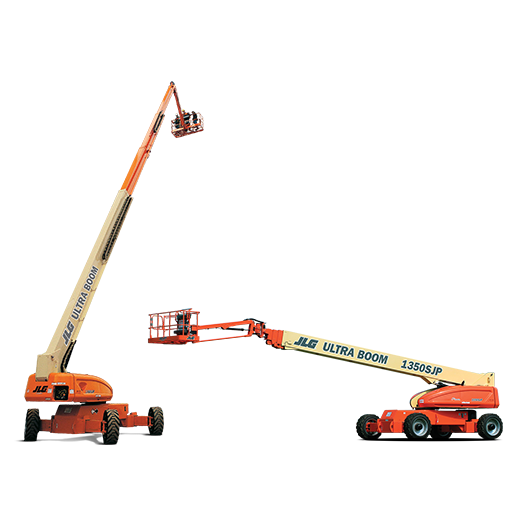

1350SJP
Telescopic Boom Lifts
Power Source | |
Auxiliary Power |
12 Volts DC |
Capacity - Fuel Tank |
117 L / 30.9 gal. |
Engine Type - Diesel (LRC) |
Deutz TD2011L4 55.9 kW 74.9 hp |
Performance Data |
|
Axle Oscillation |
0.3 m / 1 ft |
Drive Speed - 4WD |
5.20 km/h / 3.2 mph |
Gradeability - 4WD |
45 % |
Platform Capacity - Restricted |
450 kg / 992.1 lb |
Platform Capacity - Unrestricted |
230 kg / 507.1 lb |
Swing |
360 Degrees |
Swing Type |
Continuous |
Turning Radius - Outside (axles extended) |
5.89 m / 19.3 ft |
Turning Radius - Outside (axles retracted) |
6.86 m / 22.5 ft |
Dimensional Data | |
Height |
11.86 m / 38.9 ft |
Ground Clearance |
0.3 m / 1 ft |
Machine Height |
3.05 m / 10 ft |
Machine Length |
14.89 m / 48.9 ft |
Machine Width |
2.49 m / 8.2 ft |
Interior Width |
3.81 m / 12.5 ft |
Platform Dimension A |
0.91 m / 3 ft |
Platform Dimension B |
2.44 m / 8 ft |
Platform Height |
41.30 m / 135.5 ft |
Tailswing |
1.68 m / 5.5 ft |
Tyre Size |
445/50D710 Foam-Filled |
Reach Specifications | |
Working Height |
43.30 m / 142.1 ft |
Working Outreach |
25.03 m / 82.1 ft |
Horizontal Jib Rotation |
180 Degrees |
Horizontal Outreach |
24.38 m / 80 ft |
Platform Height |
41.30 m / 135.5 ft |
General Specifications |
|
Capacity - Hydraulic Reservoir |
250 L / 66 gal. |
Ground Bearing Pressure |
7.52 Kg/cm2 |
Machine Weight |
20400 kg / 44974.3 lb |
