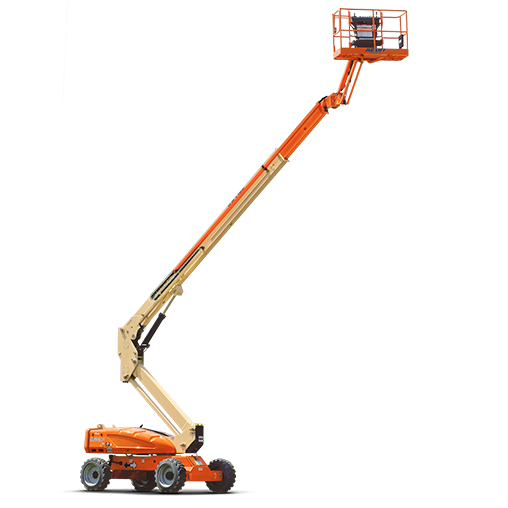

M600JP
Power Source | |
Batteries |
8 x 6V, 415 A-h |
Electrical System |
48 Volts DC |
Generator / Engine - Brand |
Kubota |
Performance Data | |
Drive Speed - Platform Lowered | 4.80 km/h / 3 mph |
Gradeability - 2WD | 30 % |
Gradeability - 4WD | 45 % |
Platform Capacity | 230 kg / 507.1 lb |
Swing | 400 Degrees |
Swing Type | Non-Continuous |
Turning Radius - Outside | 4.64 m / 15.2 ft |
Dimensional Data | |
Ground Clearance | 0.3 m / 1 ft |
Machine Height | 2.54 m / 8.3 ft |
Machine Length | 10.16 m / 33.3 ft |
Machine Width | 2.42 m / 7.9 ft |
Platform Dimension A | 0.76 m / 2.5 ft |
Platform Dimension B | 1.83 m / 6 ft |
Platform Height | 18.39 m / 60.3 ft |
Tailswing | 1.22 m / 4 ft |
Tyre Size | 36 x 14-22.5 Non-marking Foam-filled |
Wheelbase | 2.74 m / 9 ft |
Reach Specifications | |
Working Height | 20.39 m / 66.9 ft |
Working Outreach | 14.19 m / 46.6 ft |
Horizontal Jib Rotation | 180 Degrees |
Horizontal Outreach | 13.54 m / 44.4 ft |
Platform Height | 18.39 m / 60.3 ft |
General Specifications | |
Capacity - Hydraulic Reservoir | 60 L / 15.9 gal. |
Machine Weight | 7702 kg / 16980 lb |
