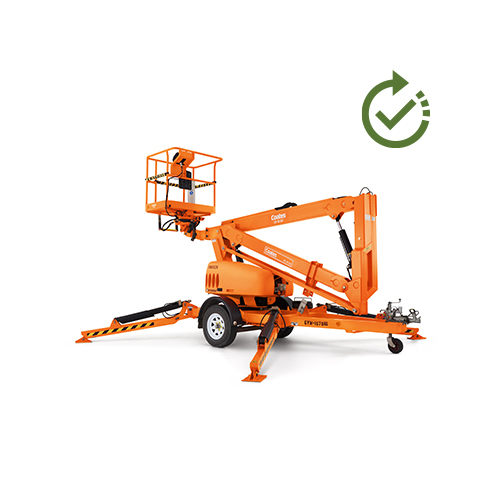

Trailer Mounted Boom - Hybrid - 10.6M (34.7ft)
Trailer Mounted Boom - Hybrid - 10.6M (34.7ft)
CODE: 10100
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Our 10 – 11m trailer mounted boom lifts are easy to operate and incredibly stable. Suitable for short-term building work, trades and repair work and many other tasks. Lightweight and easy to transport, these innovative boom lifts can run on diesel, petrol or electric power, providing a versatile choice for a wide range of indoor and outdoor tasks.
✓ Reduced noise and low emissions
✓ Light weight and towable
✓ fuel costs when running in electric mode
Suitable For
Specifications
Model / Size
Code
Max. Working Height
12.6m
Max. Platform Height
10.6m
Max. Horizontal Outreach
5.6m at 6m
Platform Size
1.25 x 0.78 x 1.07m
Outrigger Footprint
3.7 x 3.9m
Overall Width (outriggers extended)
3.7m
Overall Width (outriggers stowed)
1.58m
Overall Length
5.99m
Transport Height
2.05m
Platform Capacity (SWL)
227kg
Max Wind Speed
45kph
Platform Levelling
Mechanical
Turntable Rotation
540° non-continuous
Tyres
185 R14
Max. Axle Capacity
1,750 kg
Trailer Tongue Weight
65kg
Brakes
Hydraulic disc
FAQ
Why hire a hybrid trailer mounted boom?
A hybrid trailer mounted boom is the cost-effective access equipment solution. This boom lift can be towed by a regular vehicle and conveniently positioned for elevated work up to 10.6 metres high.
What is a trailer mounted boom lift used for?
Trailer mounted booms have an elevated work platform for performing wide-ranging construction and maintenance tasks. This boom lift includes stabilizers for establishing a secure footing, plus horizontal outreach of 5.6m for safe working without the need to reach and stretch at dangerous angles.
How much to hire a hybrid trailer mounted boom?
Trailer mounted boom hybrid hire cost will depend on the duration of hire and the size of boom lift/cherry picker required. With an Australia-wide network of Coates centres, and more available equipment than anyone else, you are assured of the best possible hire cost.
A hybrid trailer mounted boom is the cost-effective access equipment solution. This boom lift can be towed by a regular vehicle and conveniently positioned for elevated work up to 10.6 metres high.
What is a trailer mounted boom lift used for?
Trailer mounted booms have an elevated work platform for performing wide-ranging construction and maintenance tasks. This boom lift includes stabilizers for establishing a secure footing, plus horizontal outreach of 5.6m for safe working without the need to reach and stretch at dangerous angles.
How much to hire a hybrid trailer mounted boom?
Trailer mounted boom hybrid hire cost will depend on the duration of hire and the size of boom lift/cherry picker required. With an Australia-wide network of Coates centres, and more available equipment than anyone else, you are assured of the best possible hire cost.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.Model / Size
Code
Max. Working Height
12.6m
Max. Platform Height
10.6m
Max. Horizontal Outreach
5.6m at 6m
Platform Size
1.25 x 0.78 x 1.07m
Outrigger Footprint
3.7 x 3.9m
Overall Width (outriggers extended)
3.7m
Overall Width (outriggers stowed)
1.58m
Overall Length
5.99m
Transport Height
2.05m
Platform Capacity (SWL)
227kg
Max Wind Speed
45kph
Platform Levelling
Mechanical
Turntable Rotation
540° non-continuous
Tyres
185 R14
Max. Axle Capacity
1,750 kg
Trailer Tongue Weight
65kg
Brakes
Hydraulic disc
