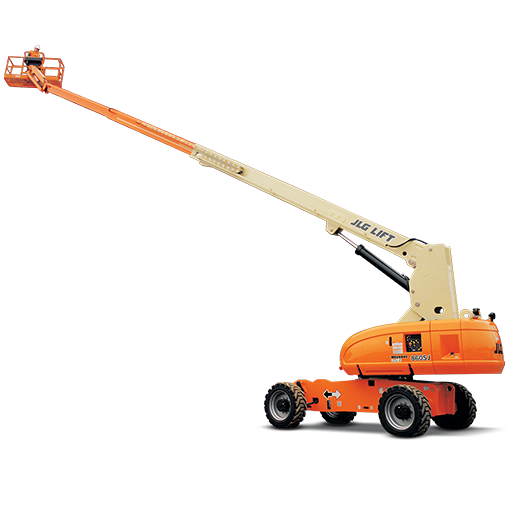

Straight Boom Lift - Diesel - 26.2M (86ft)
Straight Boom Lift - Diesel - 26.2M (86ft)
CODE: 10205
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Straight booms are the easiest way to get maximum length for working at heights. The telescopic extension gives this 24.3m – 26.8m diesel straight boom the advantage. Straight booms are simple, steady and easy to manoeuvre. Designed for outdoor use, this boom is an essential component of major building projects, renovations and maintenance schedules, and can save savvy operators lots of time and money.
Suitable For
Specifications
860SJ
Telescopic Boom Lifts
| Performance Data | |
Axle Oscillation |
0.2 m / 8 in. |
Drive Speed - 2WD |
5.60 km/h / 3.5 mph |
Drive Speed - 4WD |
5.60 km/h / 3.5 mph |
Gradeability - 2WD |
30 % |
Gradeability - 4WD |
45 % |
Platform Capacity - Restricted |
340 kg / 749.6 lb |
Platform Capacity - Unrestricted |
230 kg / 507.1 lb |
Swing |
360 Degrees |
Swing Type |
Continuous |
Turning Radius - Outside (2WS) |
6.86 m / 22.5 ft |
| Dimensional Data | |
Ground Clearance |
0.3 m / 1 ft |
Machine Height |
3.05 m / 10 ft |
Machine Length |
12.19 m / 40 ft |
Machine Width |
2.49 m / 8.2 ft |
Platform Dimension A |
0.91 m / 3 ft |
Platform Dimension B |
2.44 m / 8 ft |
Platform Height |
26.21 m / 86 ft |
Tailswing |
1.42 m / 4.7 ft |
Tyre Size |
15-625 Foam Filled |
| Reach Specifications | |
Working Height |
28.21 m / 92.6 ft |
Working Outreach |
23.51 m / 77.1 ft |
Horizontal Jib Rotation |
0 Degrees |
Horizontal Outreach |
22.86 m / 75 ft |
Platform Height |
26.21 m / 86 ft |
| General Specifications | |
Capacity - Hydraulic Reservoir |
235 L / 62.1 gal. |
Ground Bearing Pressure |
5.69 Kg/cm2 |
Machine Weight |
17200 kg / 37919.5 lb |
FAQ
How to operate a telescopic boom lift?
Boom lift operation is performed by the user while standing on the work platform, providing precise manoeuvrability. Boom lifts and other types of aerial platform access equipment are easy and safe to operate.
Do you need a license to operate a boom lift?
You need a license to operate boom lifts. Elevated work platform (EWP) training is offered at Coates, with the nationally accredited qualifications valid for five years. For the best possible telescopic boom lift price, contact Coates.
How wide is a boom lift?
This telescopic boom lift is only 2.49m wide, making it ideal for use in tight spaces with limited access. With 4WD gradeability of 45%, this powerful machine can access most difficult-to-reach elevated work spaces.
Limitations of a telescopic boom lift?
This boom lift has an unrestricted platform capacity limitation of 230kg. Diesel power limits its use to outdoor operation in many situations. For working indoors close to people or where noise restrictions apply, consider another type of aerial platform, such as electric powered or hybrid diesel/electric access hire equipment.
Boom lift operation is performed by the user while standing on the work platform, providing precise manoeuvrability. Boom lifts and other types of aerial platform access equipment are easy and safe to operate.
Do you need a license to operate a boom lift?
You need a license to operate boom lifts. Elevated work platform (EWP) training is offered at Coates, with the nationally accredited qualifications valid for five years. For the best possible telescopic boom lift price, contact Coates.
How wide is a boom lift?
This telescopic boom lift is only 2.49m wide, making it ideal for use in tight spaces with limited access. With 4WD gradeability of 45%, this powerful machine can access most difficult-to-reach elevated work spaces.
Limitations of a telescopic boom lift?
This boom lift has an unrestricted platform capacity limitation of 230kg. Diesel power limits its use to outdoor operation in many situations. For working indoors close to people or where noise restrictions apply, consider another type of aerial platform, such as electric powered or hybrid diesel/electric access hire equipment.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.860SJ
