Straight Boom Lift - Diesel - 38.4M (126ft)
Straight Boom Lift - Diesel - 38.4M (126ft)
CODE: 10215
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

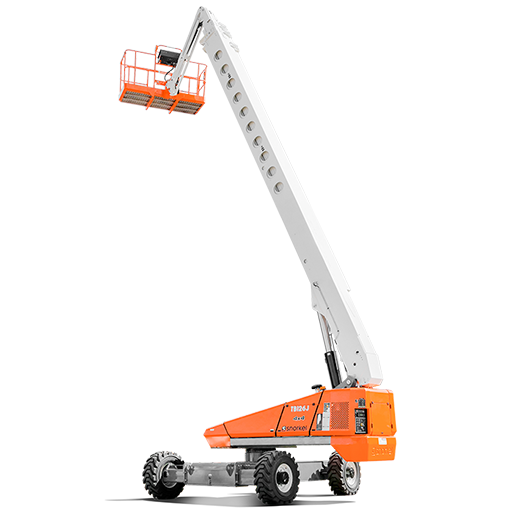

For major outdoor at-height jobs a telescopic straight boom lift with in-basket controls is the only real option. Boom lifts are easy to operate, bringing major projects within reach of builders and renovators who are ready to flex their muscles. This 36.5m – 38.1m diesel straight boom lift provides direct reach and precise manoeuvrability for performing first class work in dangerous aerial environments.
Suitable For
Specifications
| Max. working height | 132 ft |
| Max. platform height | 126 ft |
| Max. horizontal reach | 62 ft 11 in |
| Platform size | 8 ft x 3 ft |
| Overall width | 8 ft 6 in |
| Stowed height | 10 ft 5 in |
| Ground clearance | 13 in |
| Platform capacity (SWL) | 500 lbs |
| Max. drive height | 126 ft |
| Max. wind speed | 28 mph |
| Max. drive speed (elevated) | 0.15 mph |
| Max. drive speed (stowed) | 2.9 mph |
| Raise / lower time | 208 / 215 sec |
| Gradeability | 30% |
| Jib length | 6 ft 6 in |
| Jib arc | 135° (+70°/-65°) |
| Platform rotation | 180° |
| Superstructure rotation | 360° continuous |
| Outside turning radius | 33 ft |
| Tires | 445-65 D22.5 foam filled lug |
| Controls | Proportional joystick |
| Drive system | 4 wheel drive |
| Power source | Kubota V2403 65hp diesel - Tier 4 Final |
| Weight | 41,800 lbs |
FAQ
What boom lift sizes are available for hire?
At Coates, we have an extensive range of boom lifts for hire, from smaller models with limited reach to large telescopic boom lifts that provide access up to 45.7m for safely working at heights.
What size boom lift do I need?
The right boom lift will provide all the elevation you need to avoid dangerous stretching or working at uncomfortable angles. Your Coates access equipment specialist will provide you with telescopic boom lift options that are ideal for your situation.
Can a large boom lift be used as a crane?
A diesel boom lift or other elevated work platform is not a crane and shouldn’t be used as one. Rough terrain telescopic boom lifts are designed to hold workers and their equipment for safely working at heights. Lifting heavy objects crane-style with a boom lift can cause dangerous tip-over situations.
How much does it cost to rent a large boom lift?
This will depend on the duration of hire and size of telescopic boom lift required. At Coats Hire, we offer more straight boom lift hire options than anyone else, ensuring you get exactly the equipment you need for the best possible price. Enquire today regarding boom lift offers at Coates.
At Coates, we have an extensive range of boom lifts for hire, from smaller models with limited reach to large telescopic boom lifts that provide access up to 45.7m for safely working at heights.
What size boom lift do I need?
The right boom lift will provide all the elevation you need to avoid dangerous stretching or working at uncomfortable angles. Your Coates access equipment specialist will provide you with telescopic boom lift options that are ideal for your situation.
Can a large boom lift be used as a crane?
A diesel boom lift or other elevated work platform is not a crane and shouldn’t be used as one. Rough terrain telescopic boom lifts are designed to hold workers and their equipment for safely working at heights. Lifting heavy objects crane-style with a boom lift can cause dangerous tip-over situations.
How much does it cost to rent a large boom lift?
This will depend on the duration of hire and size of telescopic boom lift required. At Coats Hire, we offer more straight boom lift hire options than anyone else, ensuring you get exactly the equipment you need for the best possible price. Enquire today regarding boom lift offers at Coates.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.| Max. working height | 132 ft |
