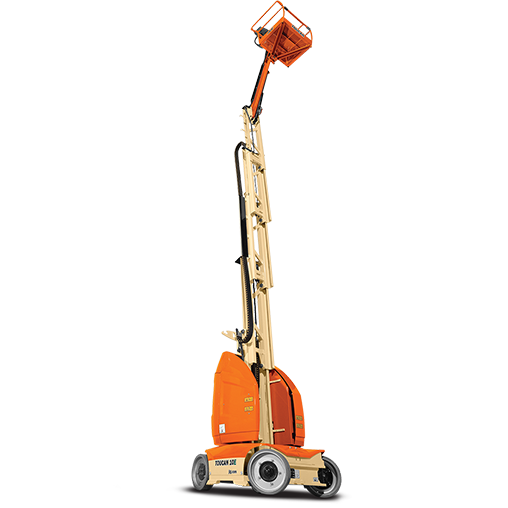

Vertical Mast - Self Propelled - 8.1m (26.6ft)
Vertical Mast - Self Propelled - 8.1m (26.6ft)
CODE: 10030
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Specialist equipment and machinery is designed to make life easier, and the 7.6m vertical mast is no exception. Capable of precise elevation, and built to provide sturdy balance and support, this self propelled vertical mast is the go-to device for getting specialist jobs done fast. In-basket controls provide full operational versatility for manoeuvring, steering and elevating the platform precisely where you want it for a comfortable working environment.
Suitable For
Specifications
| Power Source | |
| Batteries | 24V - 240 A/h |
| Electrical System | 24 Volts DC |
| Performance Data | |
| Drive Speed - Platform Lowered | 5.50 km/h / 3.4 mph |
| Gradeability - 2WD | 25 % |
| Platform Capacity | 200 kg / 440.9 lb |
| Swing | 345 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius - Outside | 1.99 m / 6.5 ft |
| Dimensional Data | |
| Ground Clearance | 0.11 m / 4 in. |
| Machine Height | 1.99 m / 6.5 ft |
| Machine Length | 2.82 m / 9.3 ft |
| Machine Width | 0.99 m / 3.2 ft |
| Platform Dimension A | 0.90 m / 3 ft |
| Platform Dimension B | 0.70 m / 2.3 ft |
| Platform Height | 8.10 m / 26.6 ft |
| Tailswing | 0.13 m / 5 in. |
| Tyre Size | 406 x 125 mm Solid Non-Marking |
| Wheelbase | 1.20 m / 3.9 ft |
| Reach Specifications | |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 3.08 m / 10.1 ft |
| Platform Height | 8.10 m / 26.6 ft |
| Up and Over Height | 6.51 m / 21.4 ft |
| General Specifications | |
| Capacity - Hydraulic Reservoir | 9 L / 2.4 gal. |
| Machine Weight | 2990 kg / 6591.8 lb |
FAQ
What is a self-propelled telework platform?
A self-propelled telework platform is an aerial work platform for safely working at heights. The platform is raised and lowered by the operator using on-platform controls. This self-propelled platform is suitable for indoor or outdoor use.
Which aerial work platform do I need?
Coates provides extensive aerial work platform options. Our elevated work platforms include scissor lifts, knuckle lifts, telescopic boom lifts and other self-propelled platform solutions. This self-propelled lift platform includes an oscillating axle for convenient manoeuvring into position for optimum performance.
Who is qualified to use a self-propelled telework platform?
Telework platform operators at heights over 11m are required to hold the relevant qualification. Coates offers full elevated work platform (EWP) training. The qualification is nationally accredited and training takes only one day to complete.
A self-propelled telework platform is an aerial work platform for safely working at heights. The platform is raised and lowered by the operator using on-platform controls. This self-propelled platform is suitable for indoor or outdoor use.
Which aerial work platform do I need?
Coates provides extensive aerial work platform options. Our elevated work platforms include scissor lifts, knuckle lifts, telescopic boom lifts and other self-propelled platform solutions. This self-propelled lift platform includes an oscillating axle for convenient manoeuvring into position for optimum performance.
Who is qualified to use a self-propelled telework platform?
Telework platform operators at heights over 11m are required to hold the relevant qualification. Coates offers full elevated work platform (EWP) training. The qualification is nationally accredited and training takes only one day to complete.
